This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on. The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Features:
Complete Water Filling Machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system employ famous brand advanced products. Each machine element that contacts with the liquid is made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc. The quality of the equipment reaches the international advanced level.
Water treatment system
Processing included: quartz sand filter, active carbon filter, sodium ion exchanger, precision filter, RO ( Reverse Osmosis ), ozone generator, finished water tank

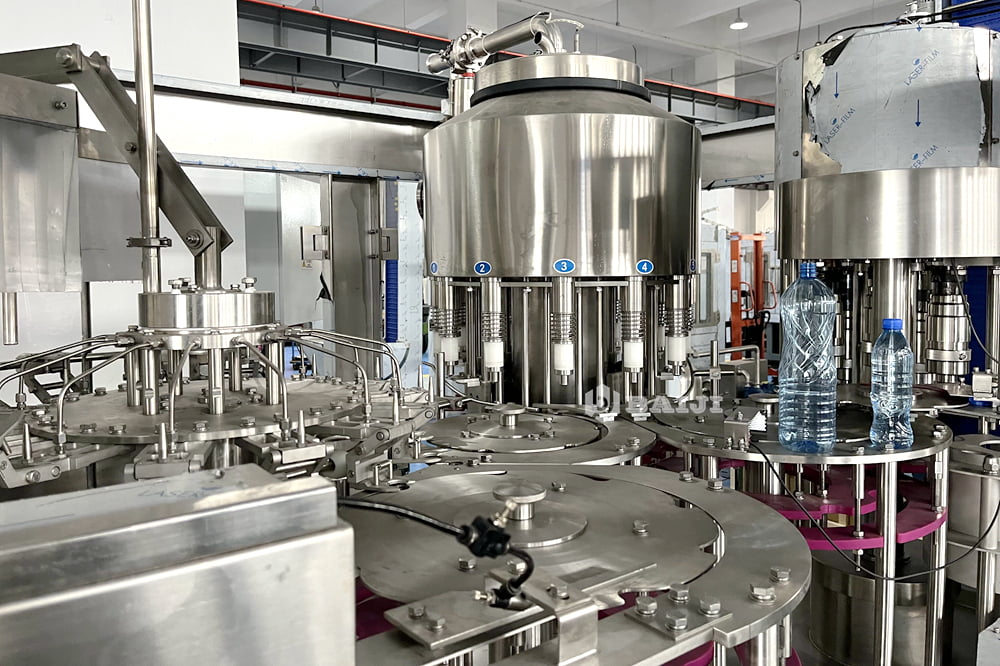

3 in 1 washing filling and capping machine
It can work for different size bottle from 200ml to 2000ml, but do make sure the same cap. Actually, we can provide different models filling unit according to your speed needs. Min. 2000-3000bph, Max. 24000bph.
Automatic shrink sleeve labeling machine
It consist of auto labeling machine, heat shrink tunnel and steam generator.
This machine adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated.
Automatic PE film wrapping machine
To pack several bottles into one package, make it easier for delivery.
| Model | washing heads | filling heads | capping heads | capacity ( 500ml ) | power ( kw ) | weight ( kg ) | dimension ( mm ) |
| CGF8-8-3 | 8 | 8 | 3 | 2000 | 1.9 | 1500 | 1900*1420*2000 |
| CGF14-12-5 | 14 | 12 | 5 | 3000-4000 | 3.5 | 2500 | 2450*1800*2400 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-7000 | 4.0 | 3500 | 2650*1900*2400 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-9000 | 4.8 | 4500 | 2900*2100*2400 |
| CGF32-32-10 | 32 | 32 | 10 | 10000-12000 | 7.6 | 6500 | 4100*2600*2400 |
| CGF40-40-12 | 40 | 40 | 12 | 12000-15000 | 8.3 | 8500 | 4550*2650*2400 |
Baiji machinery can help you design factory layout, bottle shape, label, etc.
